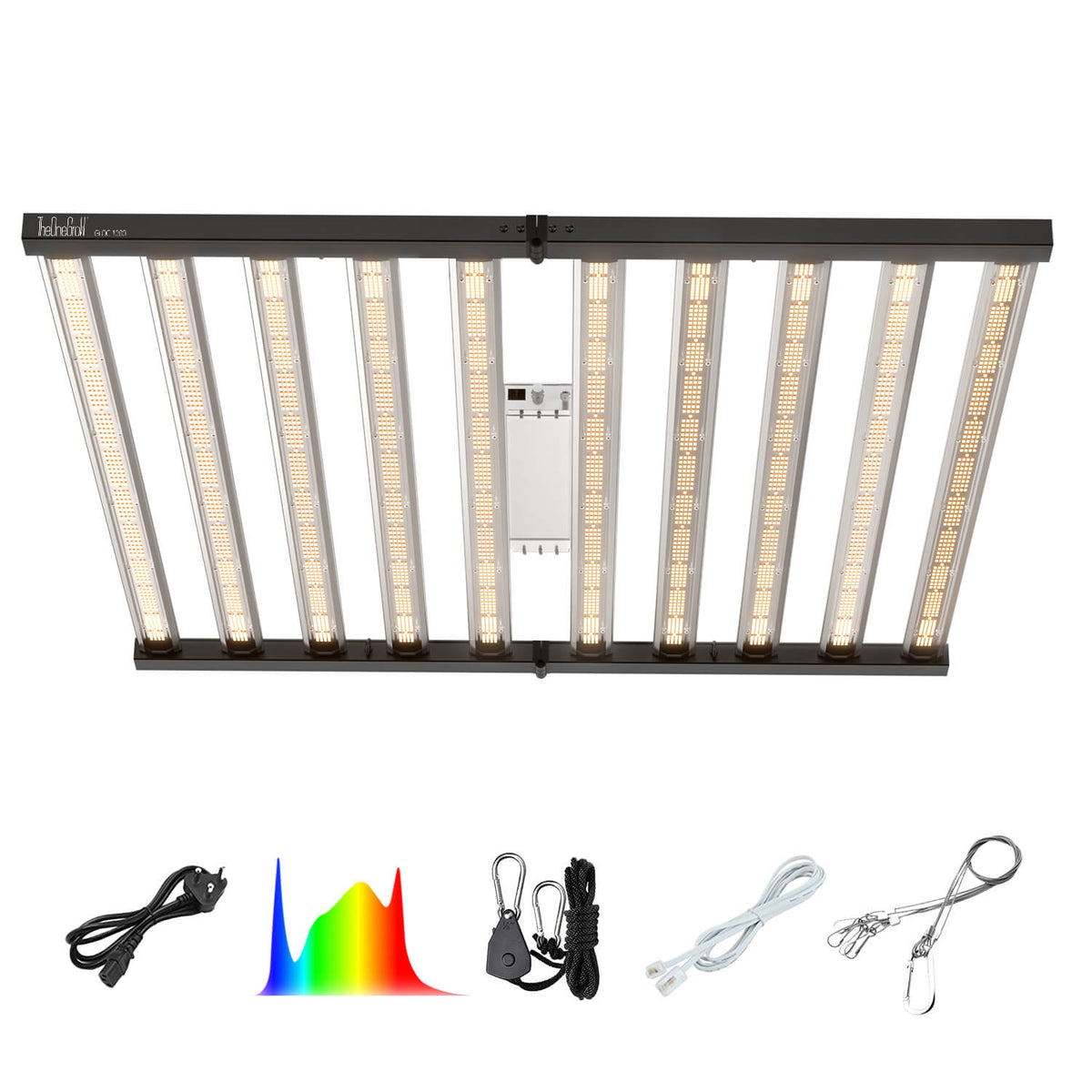

Large foldable multi-bar frame
The fixture distributes its light source across a broad physical platform.


OC1000 is the largest current OC-series option. Confirm canopy dimensions, safe hanging clearance, power capacity, ventilation and heat management before planning around this fixture.
Confirm crop type, growth stage, hanging clearance, airflow and electrical capacity before installation.
application and product planning image
The wide foldable frame can support a large active area, but final performance depends on the entire cultivation environment.
Actual plant performance depends on crop, stage, height, daily light duration, airflow and the wider growing environment.
The fixture distributes its light source across a broad physical platform.

Use only the output level that the crop, room, ventilation and electrical plan can support.
Plan reliable room airflow around the open frame and driver area.

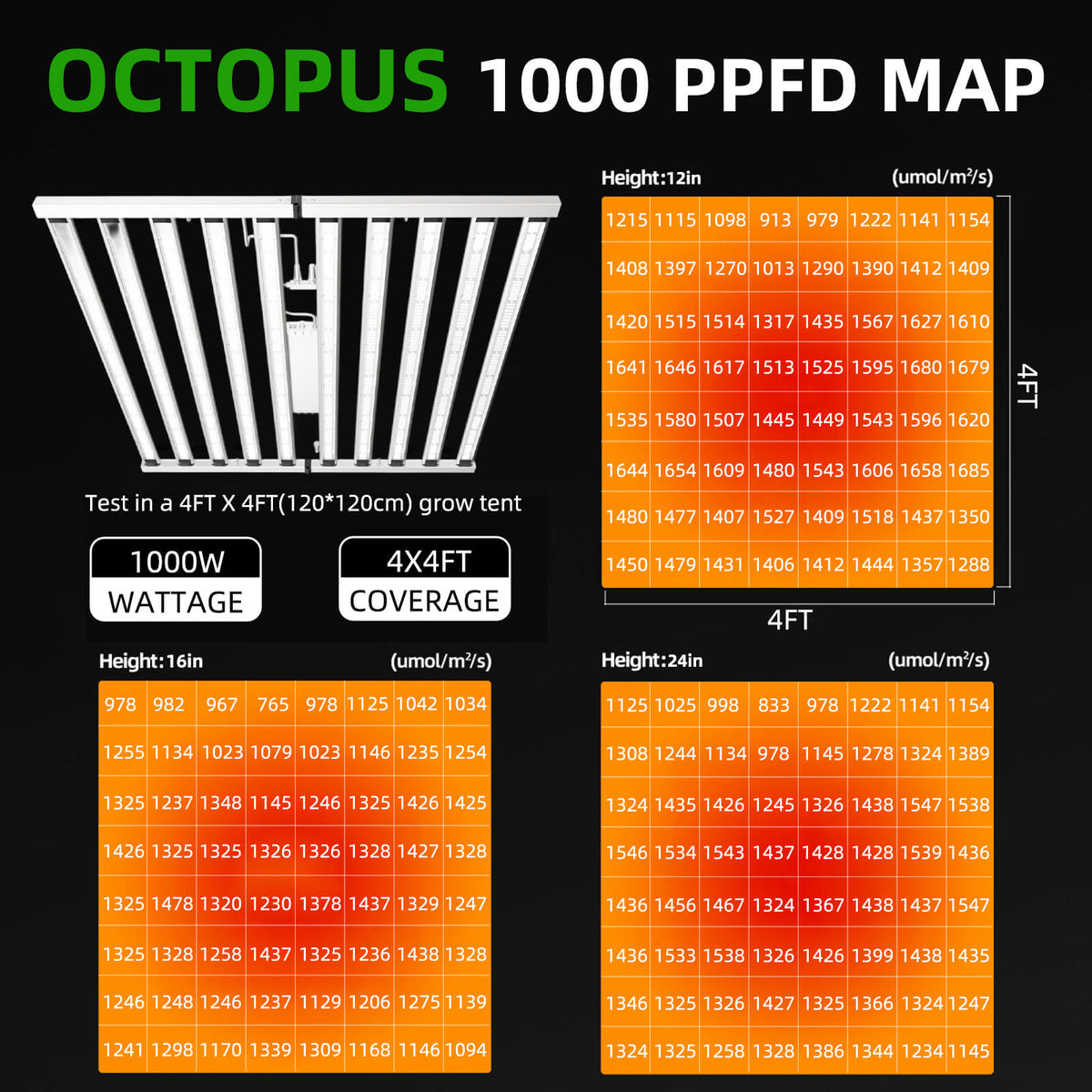

The pictured test map is useful for comparison, not a promise of identical results in another room.

performance and placement referenceTreat the pictured readings as one test setup, not a guaranteed result for every crop, room or hanging height.
Reflective walls, plant height, dimmer position, airflow, fixture spacing and measuring equipment can change readings.
Use active canopy size, fixture format and environmental capacity to narrow the choice.
Use the real product media to verify what arrives and whether another fixture format fits the plan better.

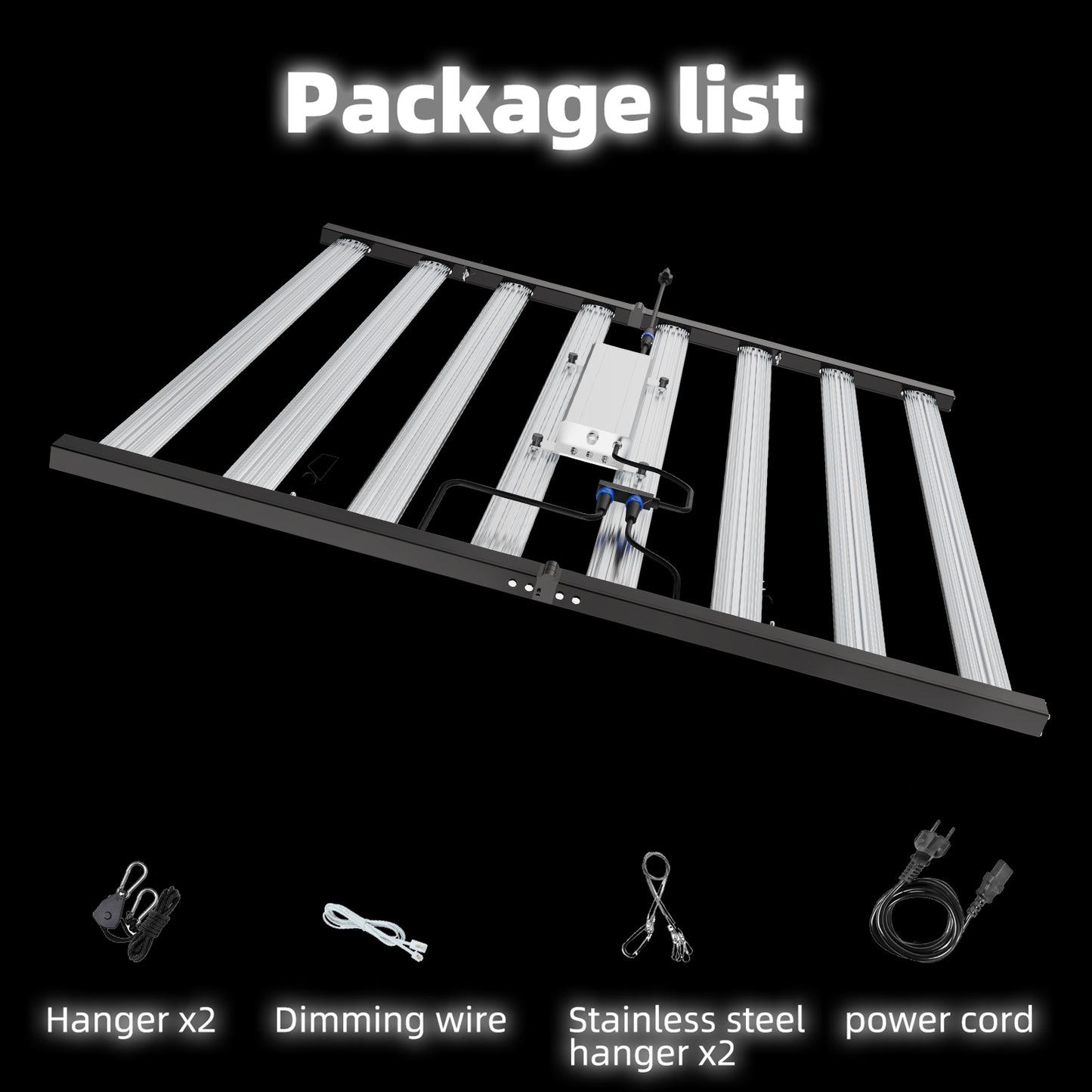

package and included accessoriesUse the current package image to confirm the fixture and included accessories before ordering.
product imageOC800 may be the better fit when the room does not require or support the largest OC-series output.
Only values supported by the current U.S. product record and media are included here.
| Specification | Details |
|---|---|
| Light and role | |
| Model | OC1000 |
| Rated input | 1000W |
| Product role | Primary grow light |
| Planning fit | 5 x 5 ft and larger controlled plans |
| Fixture and control | |
| Fixture format | Foldable multi-bar |
| Control | Dimmable output |
| Thermal design | Passive bar cooling |
| Input voltage | AC 100-277V |
| Physical and operating details | |
| Product dimensions | 43.7 L x 43.7 W x 3.66 H in (1110 x 1110 x 93 mm) |
| Operating temperature | Maximum ambient 95°F (35°C) |
Practical answers for planning, installing and comparing OC1000.
Use the current product media as a reference, begin conservatively and adjust after observing canopy response. No single height is correct for every crop or room.
It is intended for a large, controlled plan. A smaller OC-series fixture or MA-series board is usually easier to match to a compact space.
Confirm hanging clearance, electrical capacity, airflow, fixture spacing and protection from direct spray or standing water.
Use the package image and current product record to confirm the fixture, power components, mounting accessories and documentation included with this listing.
Compare canopy size, fixture format, output level, placement role and environmental capacity rather than choosing by wattage alone.
Review the current Shipping Policy and Refund Policy. Use the Contact page for compatibility or warranty questions before ordering.
Read current customer feedback and product ratings.
